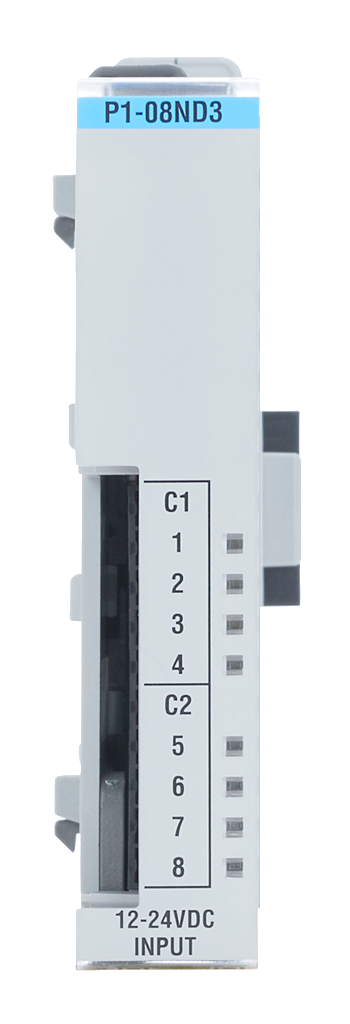

P1-08ND3

This function returns the state of a single channel.

bool point = P1.readDiscrete(1,2); // Read state of slot 1 channel 2

point = base[1][2].value # Read state of slot 1 channel 2

This function returns the state of all 8 channels. It would return 0x7F if channels 1-7 are on.

uint8_t allPoints = P1.readDiscrete(1); // Read state of all channels for slot 1

allPoints = base[1].di_bitmapped() # Read state of all channels for slot 1

Compatible Functions

P1.readDiscrete()

Properties and Methods

import P1AM
                                                                base = P1AM.Base()
                                                                module = base[1] # Slot 1
                                                                ch = module[2] # Channel 2

ch.value
module.values
module.di_bitmapped()
base.readDiscrete()

Module Configuration and Status Tables

This module does not provide any status data and does not require configuration.

Channels: 8
Discrete Input Type: Sinking or Sourcing
Rated Input Voltage: 12-24 VDC
Examples:
Arduino
CircuitPython
