The P1AM-PROTO is a kit that contains everything needed to create your own P1AM shield. It provides a large grid of through holes and strips for easy assembly. It's the perfect platform for adding custom features to your P1AM system.
Custom fit stacking headers for shields and P1 Series power supplies
Injection molded plastic ProductivityOpen housing and latches
ProductivityOpen Overlay which can be easily cut to expose parts (LEDs, connectors, etc.)
PCB Features

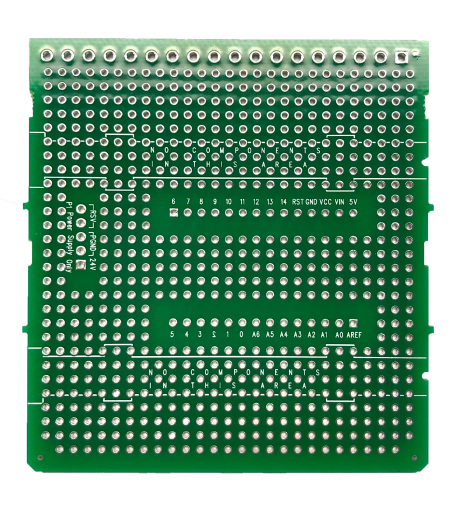

The P1AM-PROTO PCB is designed to allow for easy perfboard style prototyping. With it you can use a variety of existing add-on boards and standard components.
PCB with 2.54mm (0.1”) grid of though-holes for easy prototyping
Each header pin connected to 2 other pads
6 strip sections for easy power rail, ground, or other commonly used connections
Silkscreen to show component keep out areas for best housing fit
Footprint for 18 Pin terminal block receptacle (Right Angle, Through Hole, 3.81 mm Centers) and plug for user I/O connections
Kit Includes:
- Two 1x14 headers(2.54mm pitch)
- One 1x5 header (2.54mm pitch)
- Left and right side housing
- Front housing bezel
- Front adhesive overlay
- Two P1AM mounting latches
- One DIN rail mounting clip
Additional Resources:
Data Sheet
P1AM-PROTO
on AutomationDirect.com
P1AM-PROTO Design Files
